How to insert text element in SAP Smartforms

You can insert text element in SAP smartforms as following:

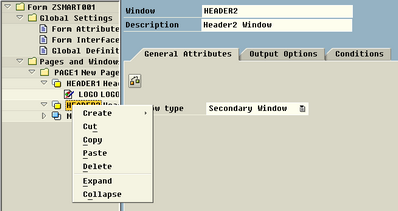

  • Select window that you want to insert graphic object and right click. System will list object that you can create.
    In the example, I have window name ’HEADER2’ and I want to insert text element in this window.

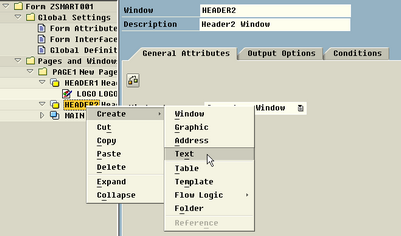

  • On popup menu, you will select Create -> Text

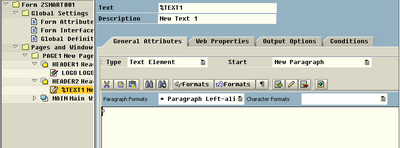

  • System will default value of text name and description but you can change them and select text type as ’Text Element’.

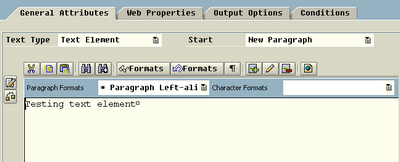

  • You can input text that you want to show by typing in editor on General Attributes tab.
    In the example, I want to show text ’Testing text element’ on window ’HEADER2’.

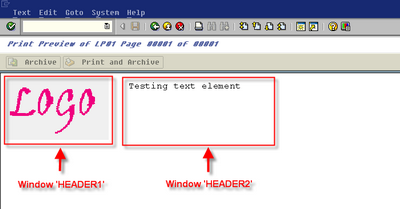

  • The output is:
