After we insert text element in SAP smartforms, the inserted text element can contain variable. We will introduce step by step to insert variable in text element.

Step by Step

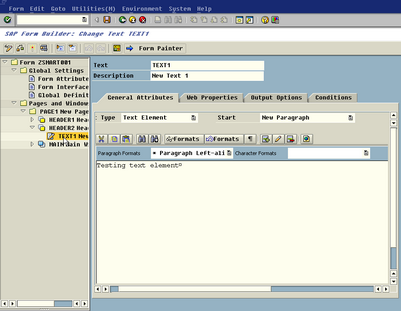

• Double click text element that you want to insert variable in left tree navigator.

  In the example, i selected text element name ’TEXT1’.

• We can insert variable to editor by  select  and input variable in popup screen.

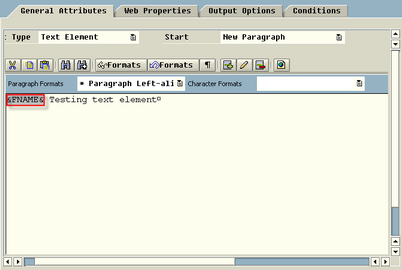

  In the example, i have variable name ’FNAME’ and i want to insert it to editor. The inserted variable name should have start and end character by ’&’.

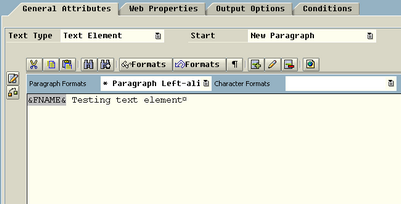

• After you completely input information, you can select  for insert the selected variable to editor. System will back to editor and show inserted variable to it.

  Be careful, Don’t input variable name directly in editor because system will assume that the variable name is a default text.

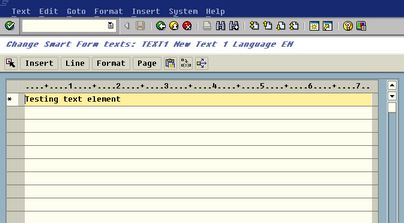

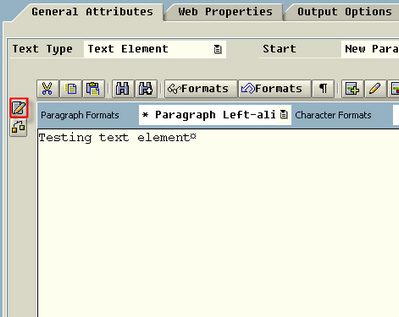

• Or you can input variable by select   in General Attributes tab. System will show editor as SAPscript editor.




• You able input variable as SAPscript syntax and back to smartforms navigator.

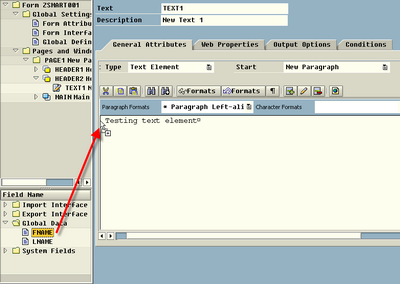

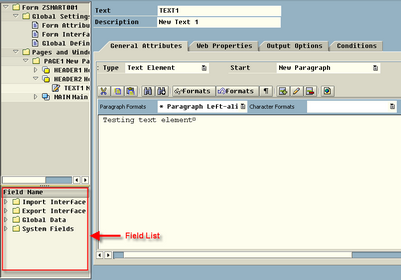

• Or you can drag and drop field by open field list navigator (Select ).


• Select field that you want to add to editor and drag and drop to editor.




• You can delete this variable by select variable and press . System will delete the selected variable from the editor.
• You can modify this variable by select variable and press . System will popup screen for modify the selected variable.

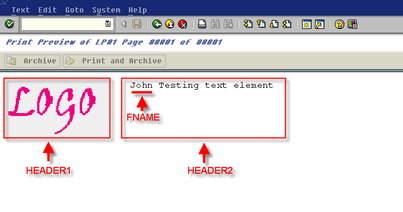

• The output is:
