When you create ABAP/4 query in SAP, create the functional area or InfoSets is a necessary process. The infoSets specify view of data. You can create the InfoSets as following:

• Go to transaction SQ02


• Input InfoSet name that want to create and click .



When you create ABAP/4 query in SAP, assigning the user group is a necessary process. The user group specify who are authorized to use the ABAP/4 query. You can create the user group as following:

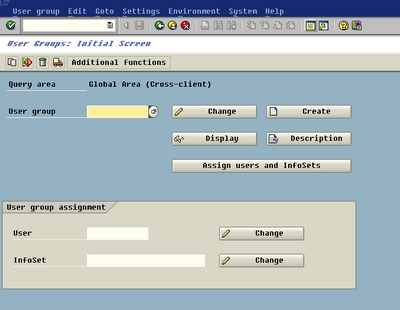

• Go to transaction SQ03

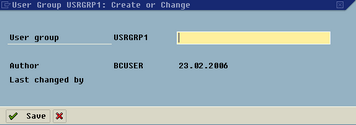

• Input user group name that want to create and click . System will popup screen for input user group description.

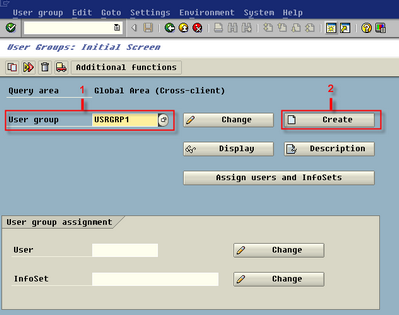

  In the example, i want to create user group name ’USRGRP1’.




The ABAP/4 query is one method in ’SAP R/3 Report Development Tools’. You can create the simply report by this way. In this way, we have 4 mains steps to create it as following:

1. Create User Groups
2. Create InfoSets
3. Assign user group to infoSet.(You can swap create infoSets as first and create user groups as second.)
4. Create the query base on the selected infoSet

The alternative command looks like IF statement in ABAP/4.

IF (condition) {
*** True ***
  ...
} ELSE {
*** False ***
  ...
}.

You can insert alternative command as follows:

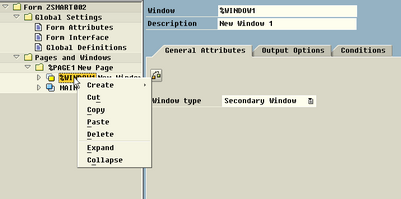

• Select window that you want to insert alternative command and right click. System will list object that you can create.

  In the example, I have window name ’%WINDOW1’ and I want to insert alternative command in this window.


Example

TYPE-POOLS: SLIS.

DATA: it_spfli TYPE TABLE OF spfli WITH HEADER LINE,
      it_cat TYPE SLIS_T_FIELDCAT_ALV,
      wa_cat TYPE slis_fieldcat_alv.

START-OF-SELECTION.
  SELECT * FROM spfli
           INTO TABLE it_spfli.

  PERFORM create_field_catalog.

  CALL FUNCTION ’REUSE_ALV_LIST_DISPLAY’
    EXPORTING
*     I_INTERFACE_CHECK              = ’ ’
*     I_BYPASSING_BUFFER             =
*     I_BUFFER_ACTIVE                = ’ ’
*     I_CALLBACK_PROGRAM             = ’ ’
*     I_CALLBACK_PF_STATUS_SET       = ’ ’
*     I_CALLBACK_USER_COMMAND        = ’ ’
*     I_STRUCTURE_NAME               =
*     IS_LAYOUT                      =
      IT_FIELDCAT                    = it_cat[]
*     IT_EXCLUDING                   =
*     IT_SPECIAL_GROUPS              =
*     IT_SORT                        =
*     IT_FILTER                      =
*     IS_SEL_HIDE                    =
*     I_DEFAULT                      = ’X’
*     I_SAVE                         = ’ ’
*     IS_VARIANT                     =
*     IT_EVENTS                      =
*     IT_EVENT_EXIT                  =
*     IS_PRINT                       =
*     IS_REPREP_ID                   =
*     I_SCREEN_START_COLUMN          = 0
*     I_SCREEN_START_LINE            = 0
*     I_SCREEN_END_COLUMN            = 0
*     I_SCREEN_END_LINE              = 0
*     IR_SALV_LIST_ADAPTER           =
*     IT_EXCEPT_QINFO                =
*     I_SUPPRESS_EMPTY_DATA          = ABAP_FALSE
*   IMPORTING
*     E_EXIT_CAUSED_BY_CALLER        =
*     ES_EXIT_CAUSED_BY_USER         =
    TABLES
      T_OUTTAB                       = it_spfli
*   EXCEPTIONS
*     PROGRAM_ERROR                  = 1
*     OTHERS                         = 2
            .
  IF SY-SUBRC <> 0.
    MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
            WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  ENDIF.
*&---------------------------------------------------------------------*
*&      Form  create_field_catalog
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM create_field_catalog .
  IF it_cat[] is initial.
    clear wa_cat.
    wa_cat-col_pos   = 1.
    wa_cat-fieldname = ’CARRID’.
    wa_cat-datatype  = ’CHAR’.
    wa_cat-inttype   = ’C’.
    wa_cat-intlen    = 3.
    wa_cat-seltext_l   = ’Airline Code’.
    wa_cat-seltext_m   = ’Airline Code’.
    wa_cat-seltext_s   = ’Airline Code’.
    append wa_cat to it_cat.

    clear wa_cat.
    wa_cat-col_pos   = 2.
    wa_cat-fieldname = ’CONNID’.
    wa_cat-datatype  = ’NUMC’.
    wa_cat-inttype   = ’N’.
    wa_cat-intlen    = 4.
    wa_cat-seltext_l   = ’Flight Conn. No’.
    wa_cat-seltext_m   = ’Flight Conn. No’.
    wa_cat-seltext_s   = ’Flight Conn. No’.
    append wa_cat to it_cat.

    clear wa_cat.
    wa_cat-col_pos   = 3.
    wa_cat-fieldname = ’CITYFROM’.
    wa_cat-datatype  = ’CHAR’.
    wa_cat-inttype   = ’C’.
    wa_cat-intlen    = 20.
    wa_cat-seltext_l   = ’Dep. city’.
    wa_cat-seltext_m   = ’Dep. city’.
    wa_cat-seltext_s   = ’Dep. city’.
    append wa_cat to it_cat.

    clear wa_cat.
    wa_cat-col_pos   = 4.
    wa_cat-fieldname = ’AIRPFROM’.
    wa_cat-datatype  = ’CHAR’.
    wa_cat-inttype   = ’C’.
    wa_cat-intlen    = 3.
    wa_cat-seltext_l   = ’Dep. airport’.
    wa_cat-seltext_m   = ’Dep. airport’.
    wa_cat-seltext_s   = ’Dep. airport’.
    append wa_cat to it_cat.

    clear wa_cat.
    wa_cat-col_pos   = 5.
    wa_cat-fieldname = ’CITYTO’.
    wa_cat-datatype  = ’CHAR’.
    wa_cat-inttype   = ’C’.
    wa_cat-intlen    = 20.
    wa_cat-seltext_l   = ’Arrival city’.
    wa_cat-seltext_m   = ’Arrival city’.
    wa_cat-seltext_s   = ’Arrival city’.
    append wa_cat to it_cat.

    clear wa_cat.
    wa_cat-col_pos   = 6.
    wa_cat-fieldname = ’AIRPTO’.
    wa_cat-datatype  = ’CHAR’.
    wa_cat-inttype   = ’C’.
    wa_cat-intlen    = 3.
    wa_cat-seltext_l   = ’Dest. airport’.
    wa_cat-seltext_m   = ’Dest. airport’.
    wa_cat-seltext_s   = ’Dest. airport’.
    append wa_cat to it_cat.

  ENDIF.
ENDFORM.                    " create_field_catalog

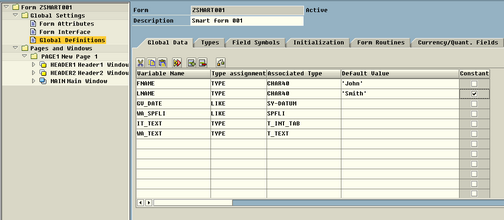

We can define global variables in SAP smartforms but these are not contained in form interface by define them in Global Settings -> Global Definitions and select Global Data tab.

See above picture, we can define variable from:

• Data type (DATE, CHAR, NUMC etc.)
• Structure in Data Dictionary
• Defined Type in Types tab

Technorati Tags: ABAP,
